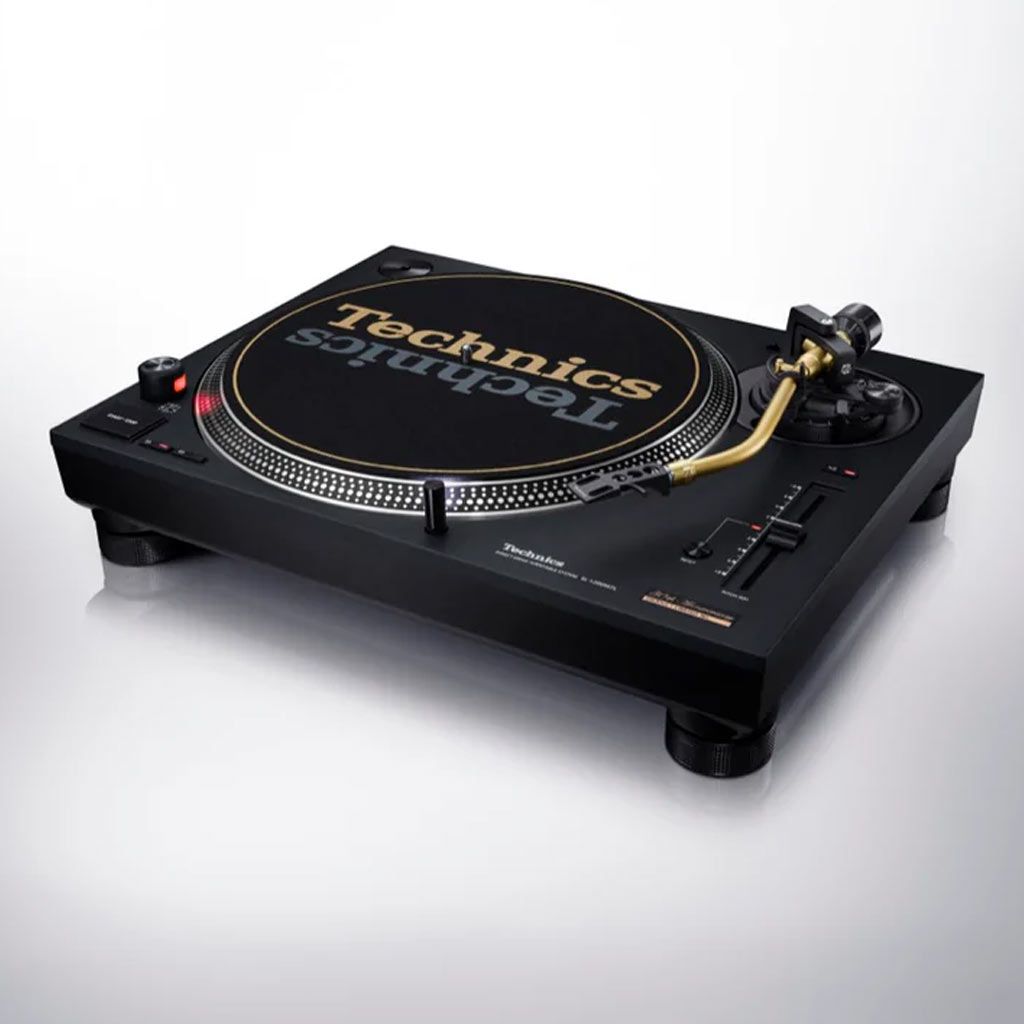

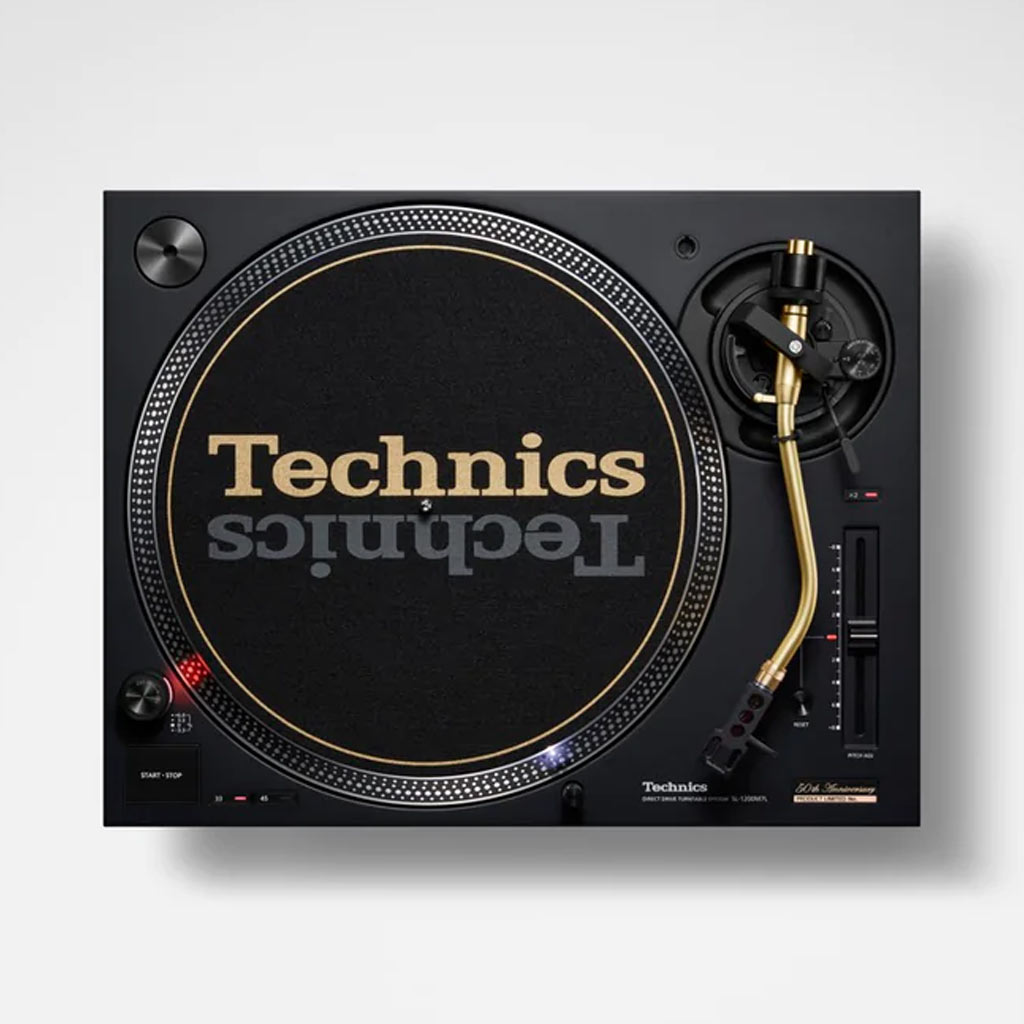

Celebrating its 50th birthday, the SL-1200 gets a fresh coat of paint with this limited SL-1200M7LPK (Matte Black). Each unit will be exclusively numbered as a stamp of authenticity.
Torque / Brake Speed Adjustment
The newest digital motor control technology, accumulated through the development of Blu-ray disc products, is applied to improve adjustment by allowing the torque and brake speed to be adjusted individually in four steps.
The Pitch Control Function
The pitch control function allows fine adjustment of the rotation speed within ±8 % / ±16 %. It does this through digital control, from positional detection of the slider to rotational control of the motor, eliminating the unnecessary DA conversion. This greatly improves tracking performance to achieve accurate and stable pitch adjustment.
Reverse Play Function
The reverse play function, which brings forth new possibilities of creative performance, makes its first appearance in the SL-1200 Series. In addition to 33-1/3 rpm and 45 rpm, a rotation speed of 78 rpm is supported.
*The torque / brake speed adjustment, rotation speed switch, and reverse play can be adjusted by switches on the main unit.
Turntable section
Type
Direct Drive Manual Turntable
Turntable Speeds
33-1/3, 45 rpm (with switch 78 rpm)
Starting Torque
0.18 N・m / 1.8 kg･cm
Build-up Characteristics
0.7 s. from standstill to 33 1/3 rpm
Wow And Flutter
0.025 % W.R.M.S.
Turntable Platter
Aluminum die-cast
Diameter: 332 mm (13-5/64 inch)
Weight: Approx. 1.8 kg (4.0 lbs.)
(including slipmat and slipsheet)
Tonearm Section
Type
Universal Static Balance
Effective Length
230 mm (9-1/16")
Overhang
15 mm (19/32")
Tracking Error Angle
Within 2° 32’ (at the outer groove of 30 cm (12") record)
Within 0° 32’ (at the inner groove of 30 cm (12") record)
Offset Angle
22°
Arm-height Adjustment Range
0 - 6 mm
Stylus Pressure Adjustment Range
0 - 4 g (Direct Reading)
Head Shell Weight
Approx. 7.6 g
Applicable Cartridge Weight Range
(without auxiliary weight)
5.6 - 12.0 g
14.3 - 20.7 g (including head shell)
Head Shell Terminal Lug
1.2 mmφ 4-pin terminal lug
Terminals
Audio Output
PHONO (Pin Jack) x 1
EARTH TERMINAL x 1
General
Power Supply
AC 110-240 V, 60 Hz
Power Consumption
8 W
Approx. 0.2 W (Standby)
Dimensions (W x H x D)
453 x 169 x 353 mm
17-27/32 × 6-21/32 × 13-29/32 inch
Weight
Approx. 9.6 kg / 21.2 lbs
Accessories
Turntable, Slipmat, Slipsheet, Dust cover, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
