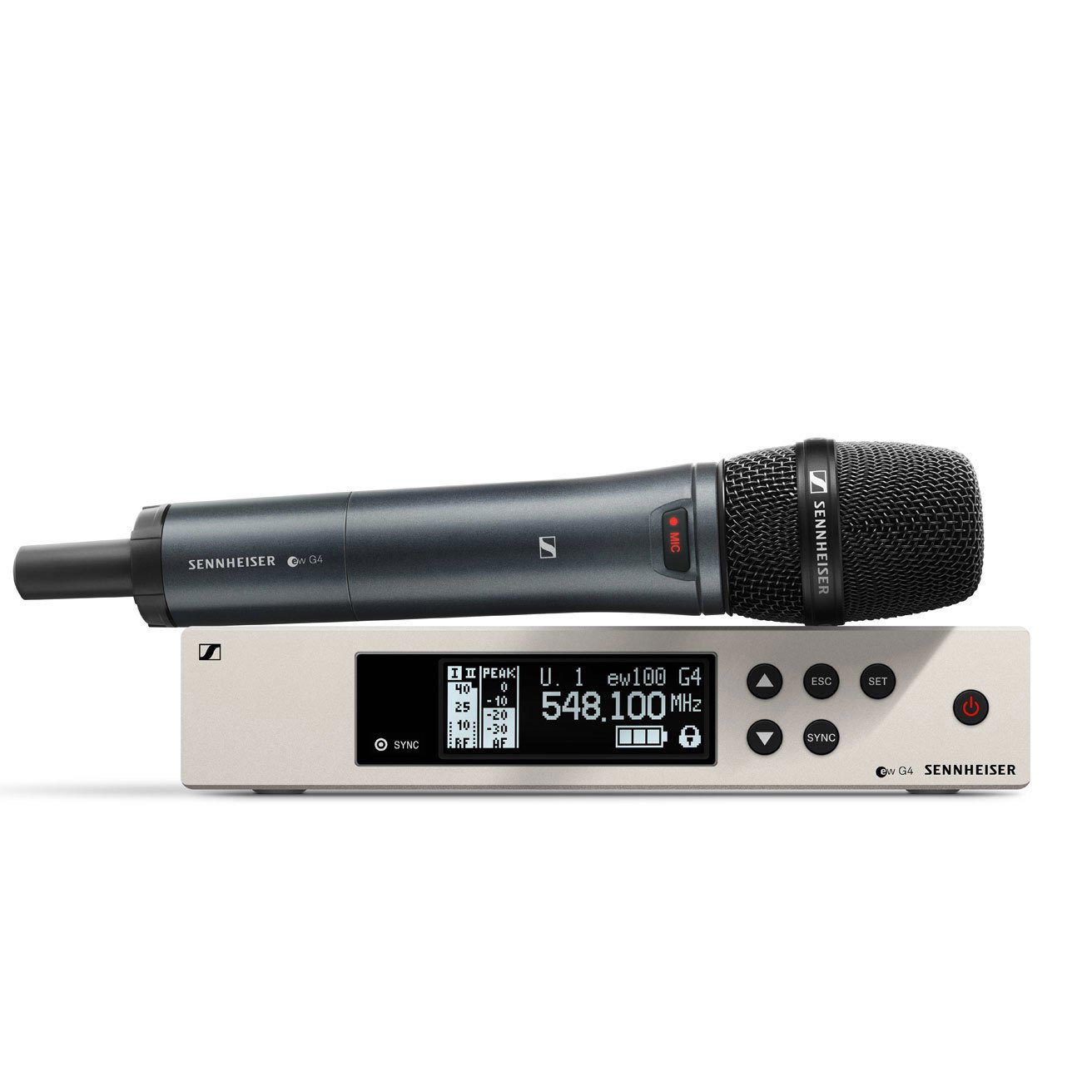

Sennheiser EW 100 G4-935-S-A1 Wireless Vocal Set

Sennheiser EW 100 G4-935-S-A1 Wireless Vocal Set
Roll over image to zoom in or click & view gallery
The Sennheiser EW 100 G4-935-S-A1 Wireless Vocal Set has been Sold Out and it is no longer available from Agiprodj! The product information is for reference only.
Find similar products in:
Authorized Dealer Dealer
Returns EZ Returns
Price Matching Match
Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.
State-of-the-art live sound featuring Sennheiser‘s renowned e 935 and e 945 capsules on a lightweight aluminum transmitter with integrated mute switch.

FEATURES:
  • Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
  • State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations
What's in the box?
  • EM 100 G4 true diversity receiver
  • SKM 100 G4-S handheld transmitter
  • MMD 935-1 microphone head (935-S variants only)
  • MMD 945-1 microphone head (945-S variants only)
  • GA 3 rackmount set
  • MZQ 1 microphone clamp
  • power supply
  • 2 AA batteries
  • 2 rod antennas
  • RJ 10 cable
  • quick guide
  • safety guide
  • manufacturer declaration sheet
  • frequency supplement sheet
Technical Data:

EM 100 G4
  • Frequency range A1: 470 - 516 MHz
  • Dimensions Approx. 190 x 212 x 43 mm
  • Compander Sennheiser HDX
  • THD, total harmonic distortion ≤ 0.9 %
  • Weight Approx. 980 g
  • Audio output 6.3 mm jack socket (unbalanced): +12 dBu
  • XLR socket (balanced): +18 dBu
  • Signal-to-noise ratio ≥ 110 dBA
  • Switching bandwidth up to 42 MHz
  • Peak deviation ±48 kHz
  • Nominal deviation ±24 kHz
  • Modulation Wideband FM
  • Power supply 12 V DC
  • Antenna connector 2 BNC sockets
  • Current consumption 300 mA
  • Adjacent channel rejection Typically ≥ 65 dB
  • Intermodulation attenuation Typically ≥ 65 dB
  • Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • RF sensitivity < 2.5 μV for 52 dBA eff S/N
  • Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV
  • Equalizer Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)
  • Temperature Range -10 °C to +55 °C
  • Receiver Principle True diversity
  • Blocking ≥ 70 dB
SKM 100 G4-S
  • Dimensions Approx. Ø 50 x 265 mm
  • Compander Sennheiser HDX
  • THD, total harmonic distortion ≤ 0.9 %
  • Weight (incl. batteries) approx. 450 g
  • Signal-to-noise ratio ≥ 110 dBA
  • RF output power Max. 30 mW
  • Switching bandwidth up to 42 MHz
  • Peak deviation ±48 kHz
  • Nominal deviation ±24 kHz
  • Operating time Typically 8 h
  • Modulation Wideband FM
  • Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption at nominal voltage: typ. 180 mA
  • with transmitter switched off: ≤ 25 µA
  • Input impedance 40 kΩ
  • Max. Input voltage 3 Veff
  • Powering 3 V battery / 2.4 V rechargeable battery
  • Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • AF frequency response 80 – 18,000 Hz
  • Temperature Range -10 °C to +55 °C
  • Frequency stability ≤ ±15 ppm
MMD 935-1
  • Sound pressure level (SPL) 154 dB SPL
  • Transducer principle dynamic
  • Pick-up pattern cardioid
  • Sensitivity 2.5 mV/Pa
