• 2500 Watt Peak, 1250 Wat RMS
-
• 137 dB max SPL
-
• 27 Hz - 120 Hz frequency response
-

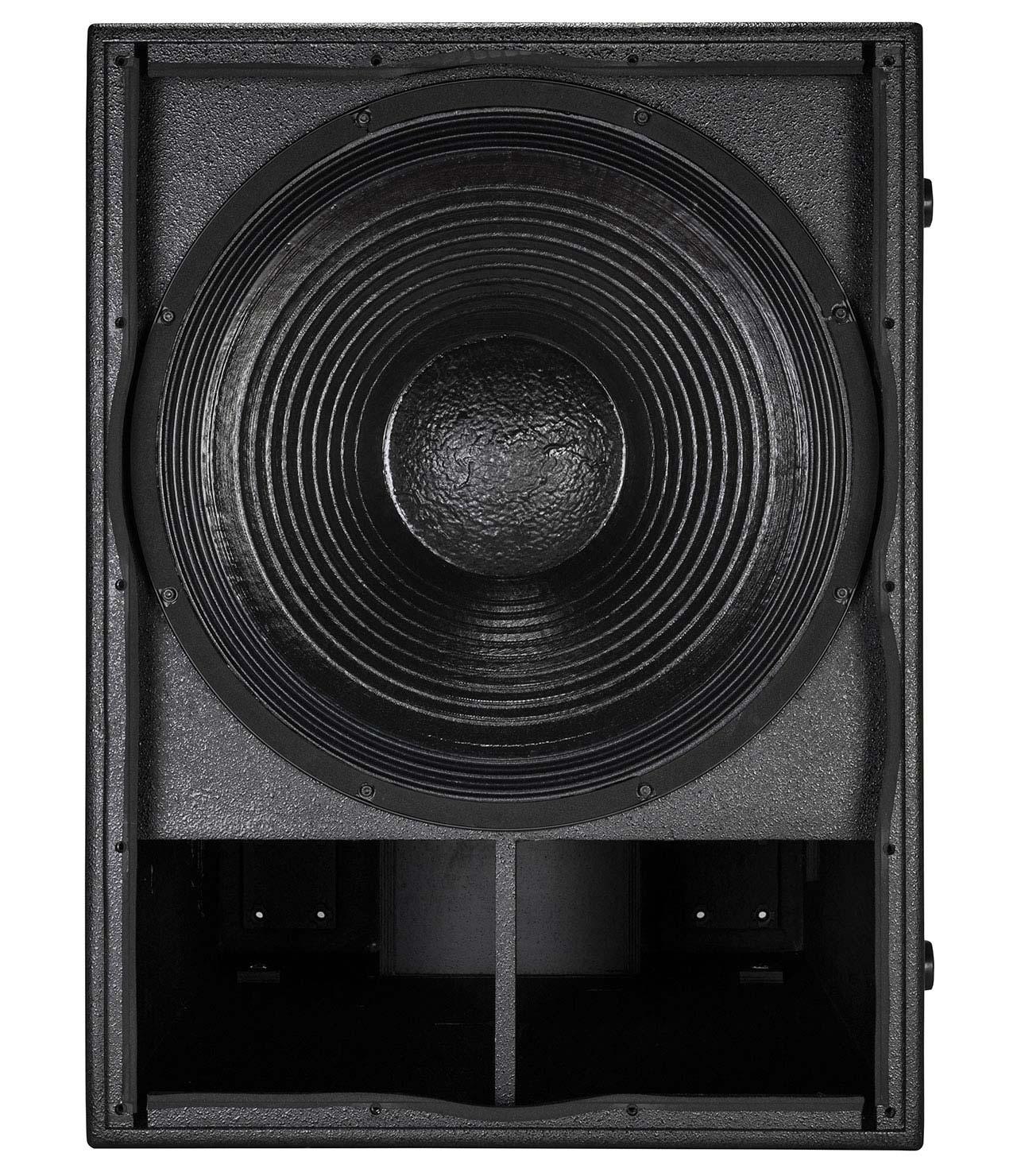

• 21" Woofer, 4.5" voice coil vented woofer
-
• DSP controlled Input section with selectable presets
-
• Delay control
-
• Baltic birch tour grade cabinet
-
• Compatible with NXL23-A (stacking)
-
• Compatible with NXL24-A (stacking)
-
• Multiple configurations with HDL 10-A and HDL 20-A
Acoustical Specifications:
-
Frequency Response -3 dB: 27 Hz ÷ 120 Hz
-
Max SPL: 137 dB
-
Woofer: 21", 4.5" v.c.
Input/Output Section
-
Input signal: bal/unbal
-
Input connectors: XLR
-
Output connectors: XLR
-
Input sensitivity: -2 dBu / +4 dBu
Processor Section
-
Crossover frequencies: Selectable 90 Hz - 120 Hz Hz
-
Protections: Thermal, RMS
-
Limiter: Fast limiter
-
Controls: Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid
Amplifier Specifications
-
Total power: 2500 W PEAK
-
Low frequencies: 2500 W PEAK
-
Total power: 1250 W RMS
-
Low frequencies: 1250 W RMS
-
Cooling: Convection
-
Connections: Powercon in-out
Cabinet
-
Cabinet Material: Baltic Birch
-

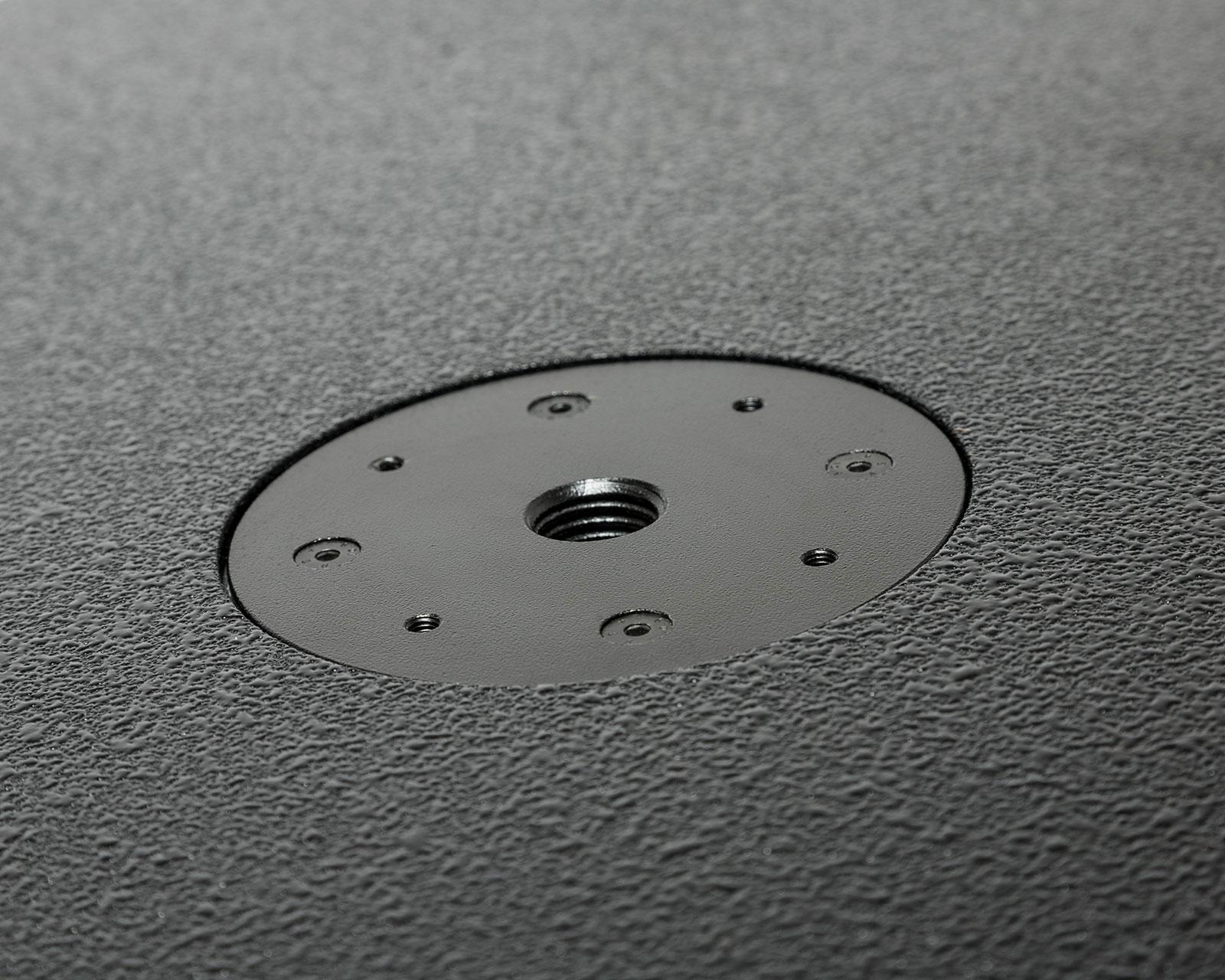

Hardware: 2xM20, 4 x wheels mounting points
-
Handles: 2 side
-
Colour: Black
Physical Specifications
-
Height: 825 / 32.48 mm/inch
-
Width: 600 / 23.62 mm/inch
-
Depth: 805 / 31.69 mm/inch
-
Net Weight: 66.6 / 146.8 kg/lbs
