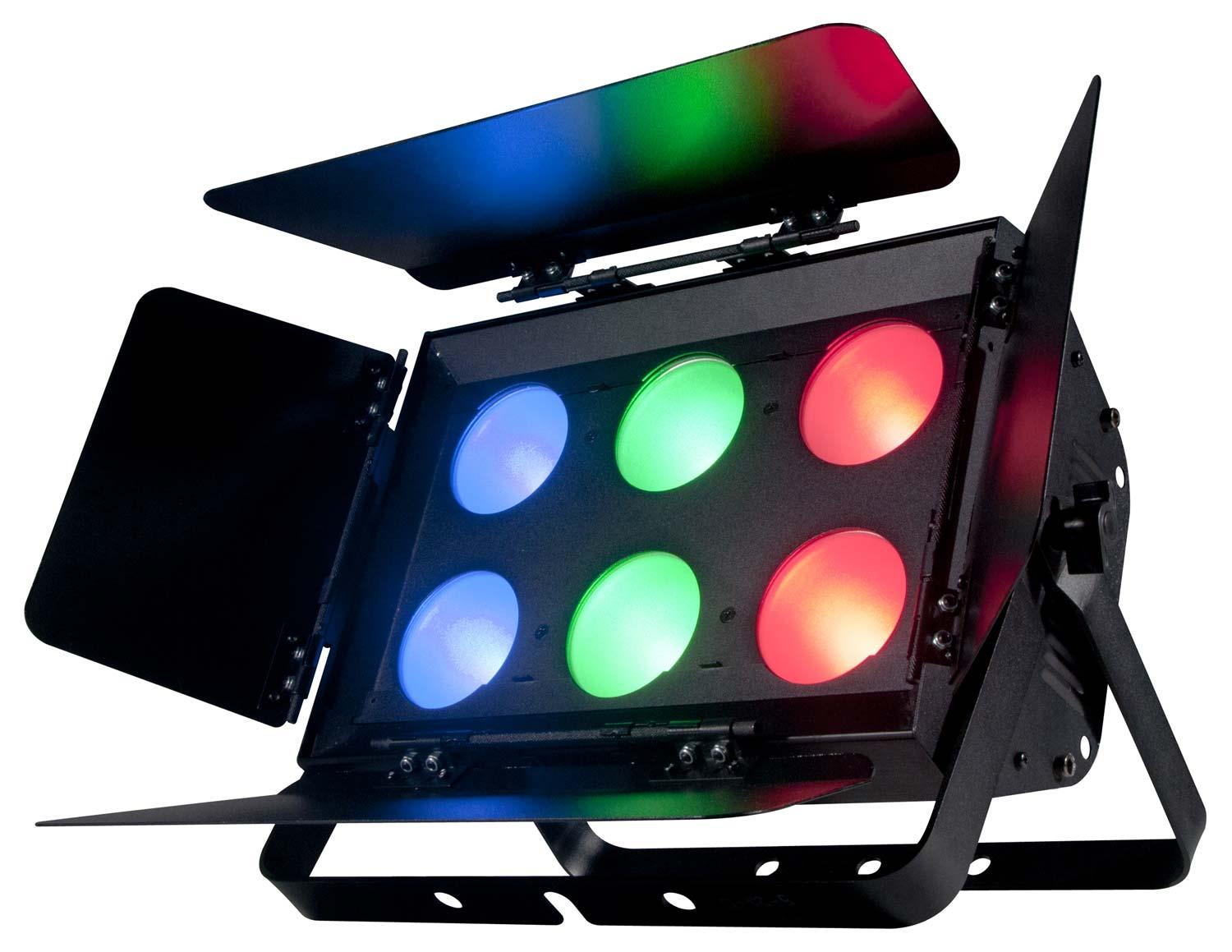

The American DJ Dotz Flood (DOT311) is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing fixture powered by six TRI COB LEDs. Dotz Flood is suitable for staging and nightclub lighting because it produces wide covers at a short distance and has no RGB color shadows.
Dotz Flood includes barn doors to regulate the beam angle. The maximum beam angle is a wide 60 degrees. This fixture is compatible with the ADJ DF FC wireless foot controller with a wire-free range up to 30ft./10M.
The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, and a 4-button LCD DMX display. Dotz Flood may run in its stand-alone mode from built-in programs, sound actively, or from a DMX Controller. It’s also compatible with the ADJ UC3 Series controllers.
Specifications:
• Wash/Blinder fixture with six COB TRI LEDs (RGB: 3-IN1): 2 x 3 COB LED matrix panels
• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color

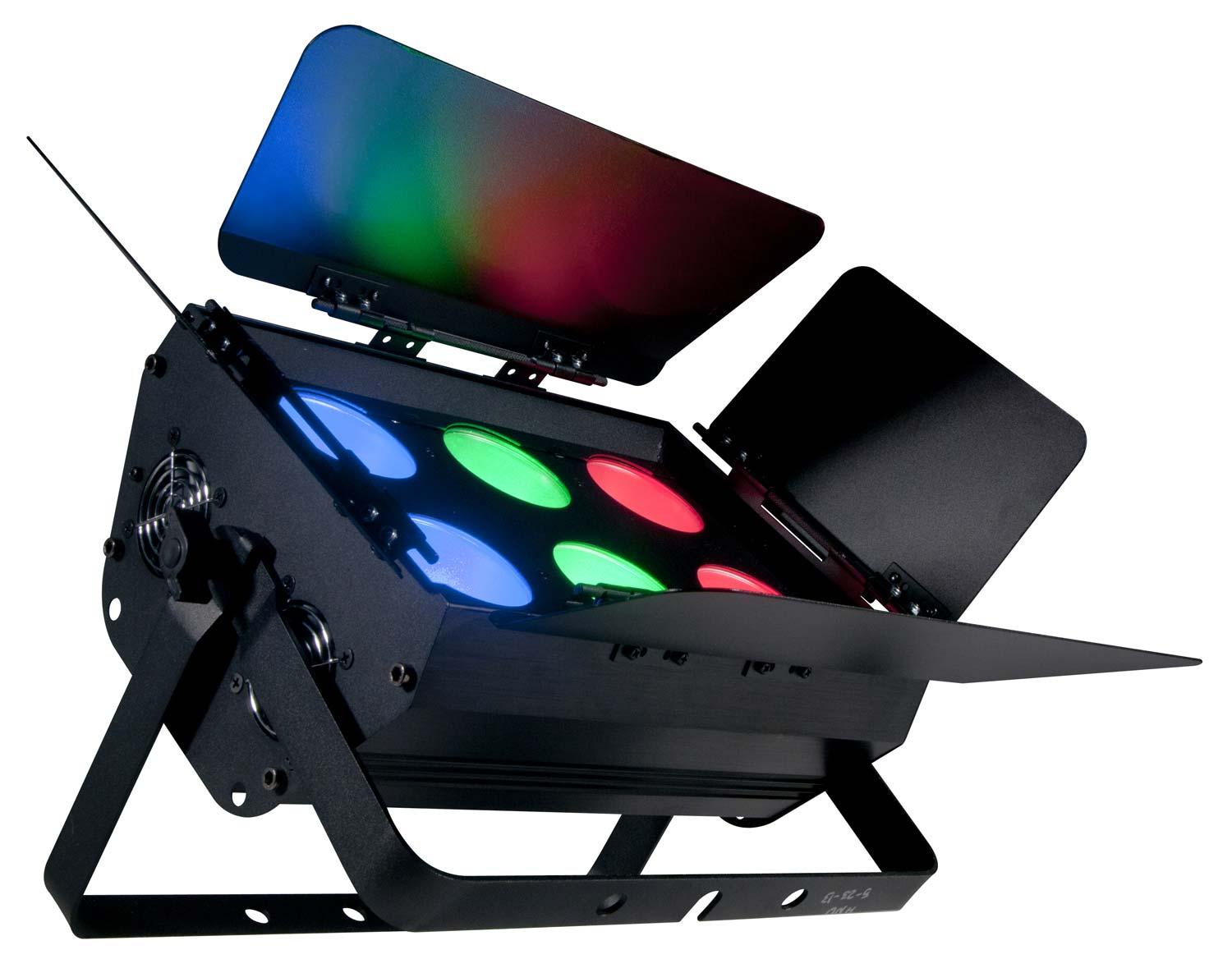

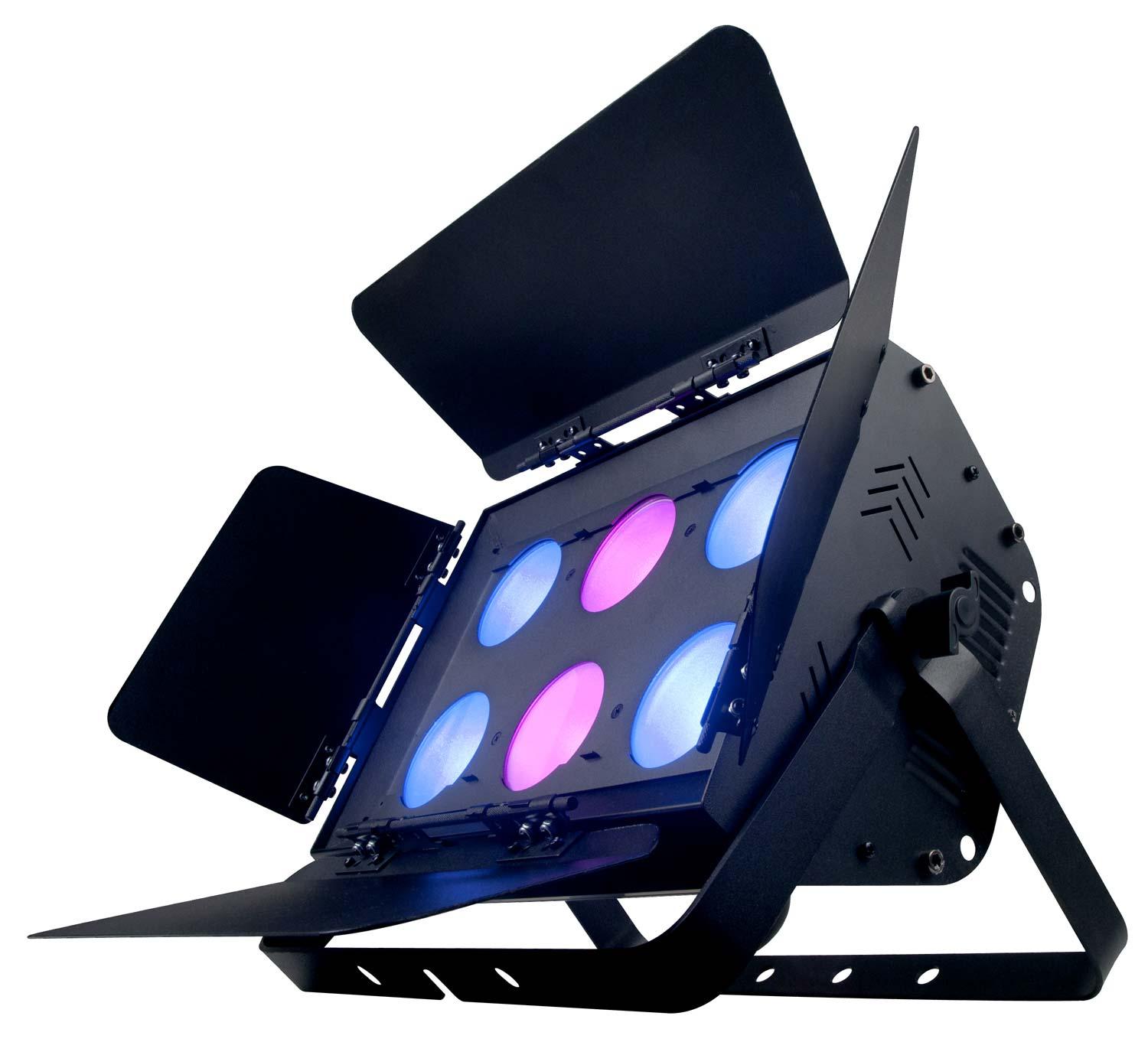

• Includes barn doors to regulate beam angle
• Great for Stage Lighting, Bands or Night Clubs
• 6 DMX Channels: 1, 3, 4, 5, 9 or 11 channels
• 5 Operational modes: Auto (Show Run), Sound Active, Manual RGB Dimmer, Static Color, and DMX-512 Mode
• 12 Built-In Programs Shows
• 36 Built-In Color Macros (In DMX Mode Only)
• Flicker Free
• LED pulse and strobe effect
• Pixel mapping capable
• 60-degree beam angle
• Electronic Dimming: 0 - 100%
• Linkable via 3-pin XLR cable
• IEC AC IN/OUT on rear to daisy chain power (up to 5 Dotz Flood's @ 120V and 9 Dotz Flood's @ 230V )

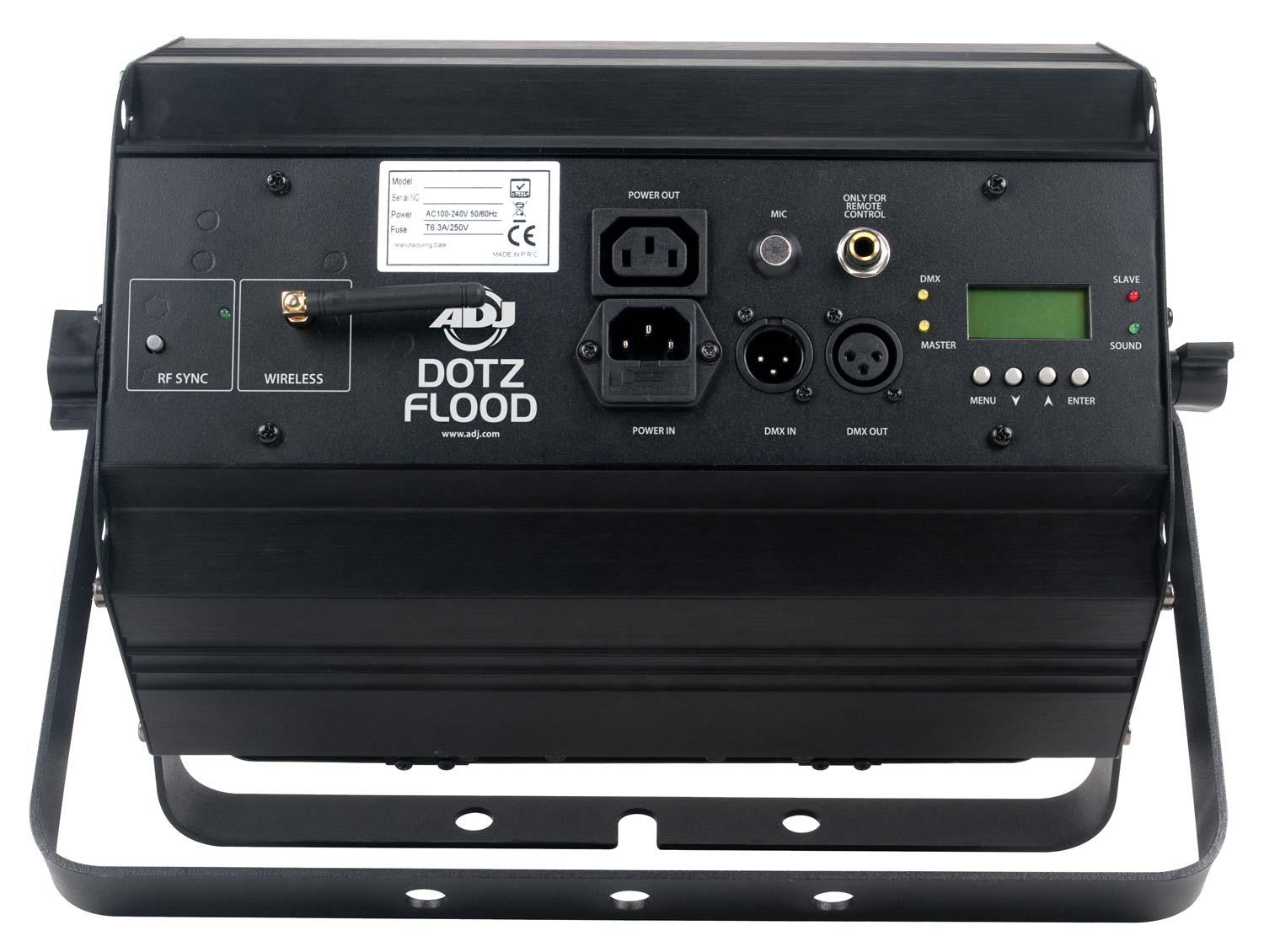

• 4-button LCD display on rear panel
• Dual yoke system allows fixture to be hung or set on the ground
• Fan Cooled
• Light Source: 6x 30-Watt COB TRI LEDs (RGB: 3-IN1):
• Power Draw: 120W
• Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
• Built-in RF antenna compatible with ADJ DF FC wireless RF foot controller, control up to 30 ft./ 10M wirelessly (sold separately)
• Multi-voltage Operation: AC 100V/60Hz - 240V/50Hz
• Dimensions (LxWxH): 15.5” x 10” x 7.25”/ 389 x 251 x 182mm
• Weight: 17 lbs. / 7.5 kgs.
Specifications subject to change without notice
