ACCU-CABLE AC5PM3PFM 5-Pin Male to 3-Pin Female DMX Adapter

ACCU-CABLE AC5PM3PFM
Roll over image to zoom in or click & view gallery
  • New/Sealed
  • $6.97
  • Qty:

FREE Shipping over $99

In Stock - Ready to Ship

Authorized Dealer Dealer
Returns EZ Returns
Price Matching Match

Affirm Financing

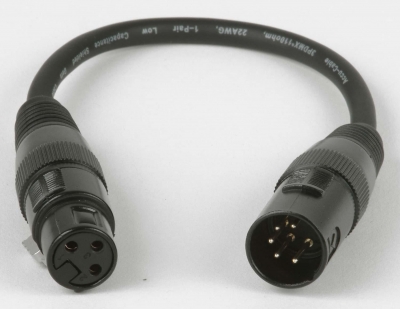

The ACCU-CABLE/AMERICAN DJ AC5PM3PFM is a 5-Pin Male to 3-Pin Female DMX Adapter turnaround cable designed to pass signal from 5-pin DMX port to a 3-pin-equipped fixture.



3 Pin DMX Cables:
•  AC3PDMX5 (5 Foot 3 Pin DMX Cable)
•  AC3PDMX10 (10 Foot 3 Pin DMX Cable)

•  AC3PDMX15 (15 Foot 3 Pin DMX Cable)
•  AC3PDMX25 (25 Foot 3 Pin DMX Cable)
•  AC3PDMX50 (50 Foot 3 Pin DMX Cable)
•  AC3PDMX100 (100 Foot 3 Pin DMX Cable)

•  AC3PM5PFM (3-Pin Male to 5-Pin Female DMX Adapter Turnaround Cable)

•  AC5PM3PFM (5-Pin Male to 3-Pin Female DMX Adapter Turnaround Cable)

 Description:
 22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

 Physical Characteristics:


 Conductor:
• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

 Insulation:
 Insulation Material PE Polyethylene

 Lay Length:
• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot

 Inner Jacket:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White

 Outer Shield:
• Outer Shield Trade Name: Duofoil®
• Outer Shield Type: Tape/Braid

 Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

 Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride

 Overall Nominal Diameter:
• Overall Nominal Diameter: .229"

 Mechanical Characteristics:
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.

 Electrical Characteristics:
• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
