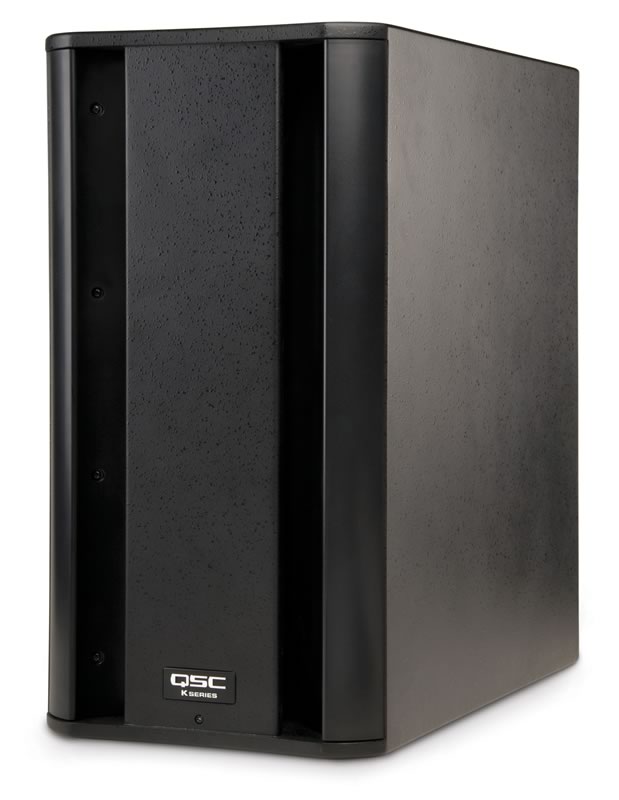

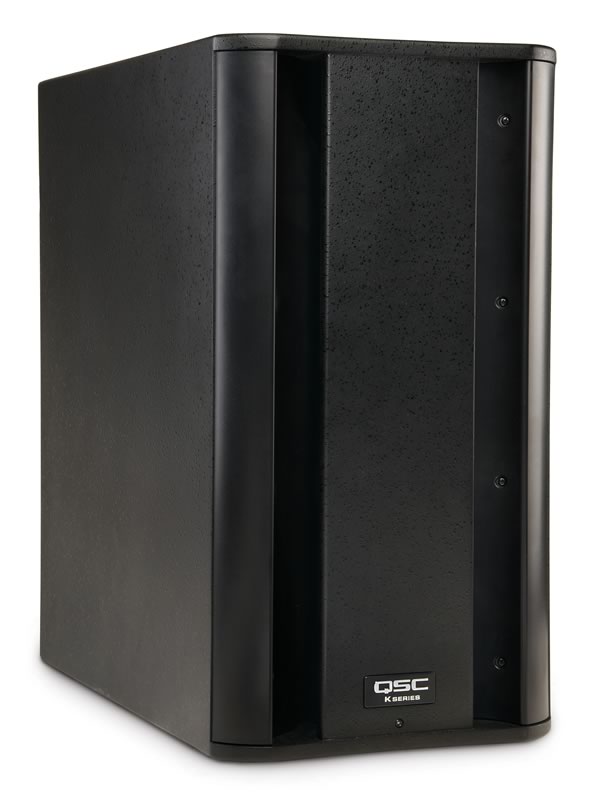

The QSC KSub is a 1000-Watt Dual 12-Inch Powered Active Subwoofer, and part of QSC's K-Series line of loudspeaker.



Features:



  • Lightweight portable powered speakers with legendary QSC amplifier power and reliability
  • 1000 watt continuous Class D power module
  • Extensive DSP enhances system performance
  • Attractive and professional appearance
  • Rugged birch plywood enclosure
  • Tour-grade 18 gauge steel grilles
  • Comfortable ergonomic handles
  • Threaded pole socket with speaker pole included

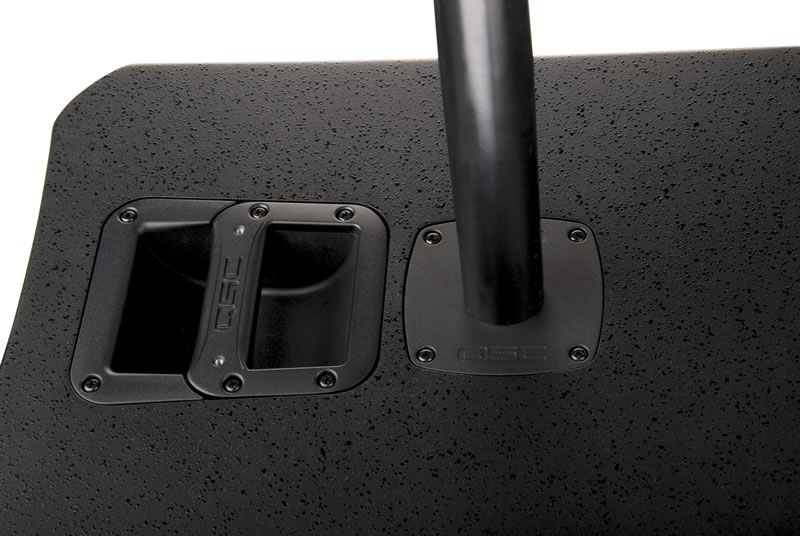

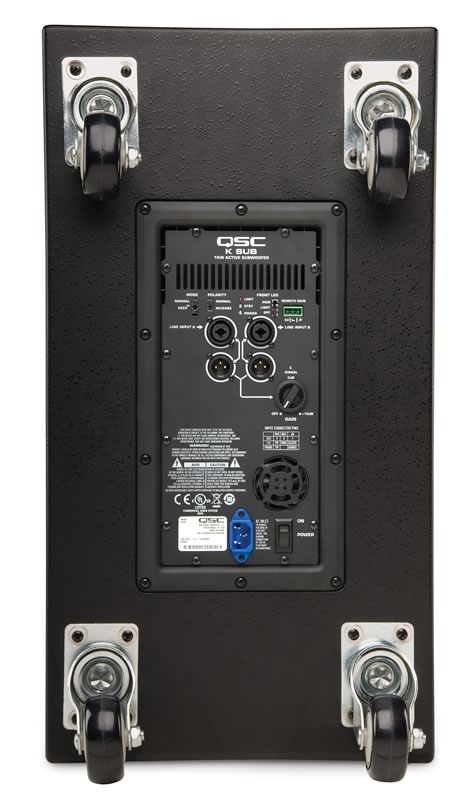

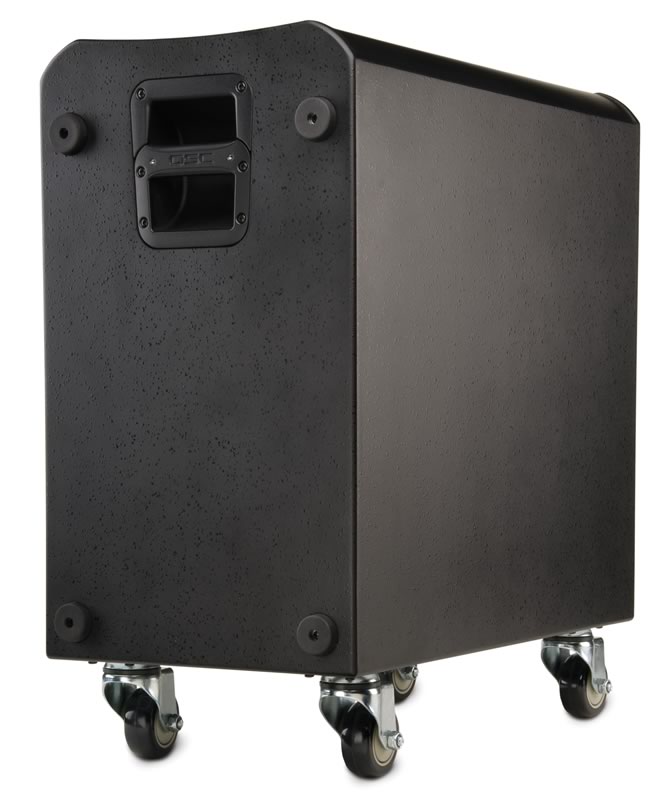

The KSub is a dual-12" bandpass design, constructed of premium birch and includes high-quality, low-noise casters. The subwoofer features a threaded pole receptacle for a positive, wobble free connection to a threaded speaker pole (included).

Remote gain control capability is offered via a potentiometer (not included) connected to the on-board Euroblock connector. In an installed application, multiple K Series speakers can be "daisy-chained" for total gain control from a single remote pot. Auto-standby mode is engaged after 5 minutes of inactivity.



Extensive DSP



  • DEEP™ and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
  • GuardRail™ protection, first introduced on our GX Series amplifiers protects both the amplifier module and your performance from unnatural and destructive clipping.





K Series
SPECIFICATIONS KSub
Configuration 4th Order Bandpass
Transducers
  Low-frequency

2 x 12" cone transducers
Frequency Response (-6 dB) 48 Hz - 134 Hz
Frequency Range (-10 dB) 44 Hz - 148 Hz
Maximum SPL (1 meter) 130 dB peak
Amplifiers
Power Output 1000 W continuous Class D (2x500 W)
Input Impedance (ohms) XLR / ¼": 40k balanced / 20k unbalanced

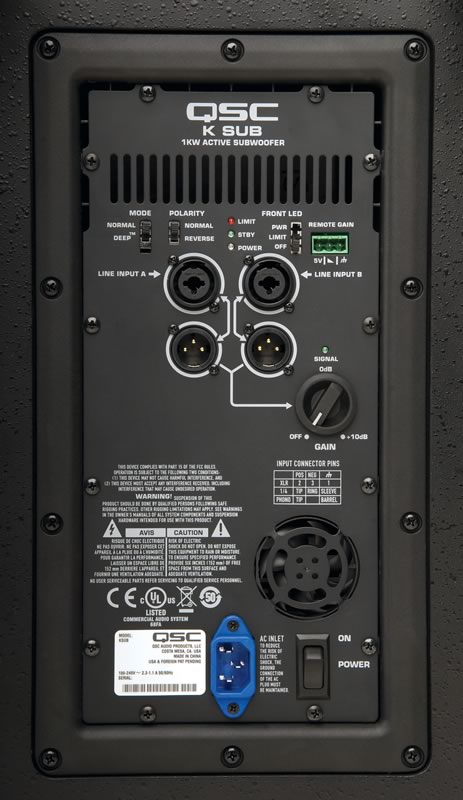

Controls Power, Gain, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (On/Off/Limit)
Indicators Power, Signal, Standby, Limit
Connectors Dual balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out, Remote gain control, Locking IEC power connector
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection Thermal limiting, excursion limiting
AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption
(1/8 Power)
100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
Enclosure
Material Painted birch plywood
Finish Black textured paint
Dimensions (HWD) 26" x 14" x 28.1" (including casters)
665 mm x 356 mm x 714 mm
Weight (Net) 74 lb / 33.6 kg
Available Accessories KSub COVER



All Specifications Subject to Change Without Notice.
