MatchThe CHAUVET DJ Freedom Par Quad-4 is a battery operated quad-color RGBA LED par uplight with built-in D-Fi 2.4 GHz wireless DMX control. Freedom™ Par Quad-4 is powerful, bright and, truly 100% wireless with a rechargeable battery and a built-in D-Fi™ transceiver. Freedom™ Par Quad-4 has 20 watts of RGBA color mixing for that extra richness and variety that amber adds to colors. It can be operated with the control panel, the included IRC-6 remote, or from any mobile phone or tablet running the FlareCON™ mobile app. Freedom™ Par Quad-4 fits perfectly inside TRUSST® and all other 12” box truss, and travels safely and stylishly in the CHAUVET® DJ CHS-FR4 VIP Gear Bag.
Features:
• 100% TRUE wireless, battery-operated, quad-color LED Par with built-in D-Fi™ 2.4GHz wireless control
• Works with FlareCON™ app and IRC-6 for wireless triggering and control
• Wirelessly master/slave with other Freedom™ fixtures for a coordinated light show
• Compatibility mode works with first generation Freedom™ fixtures

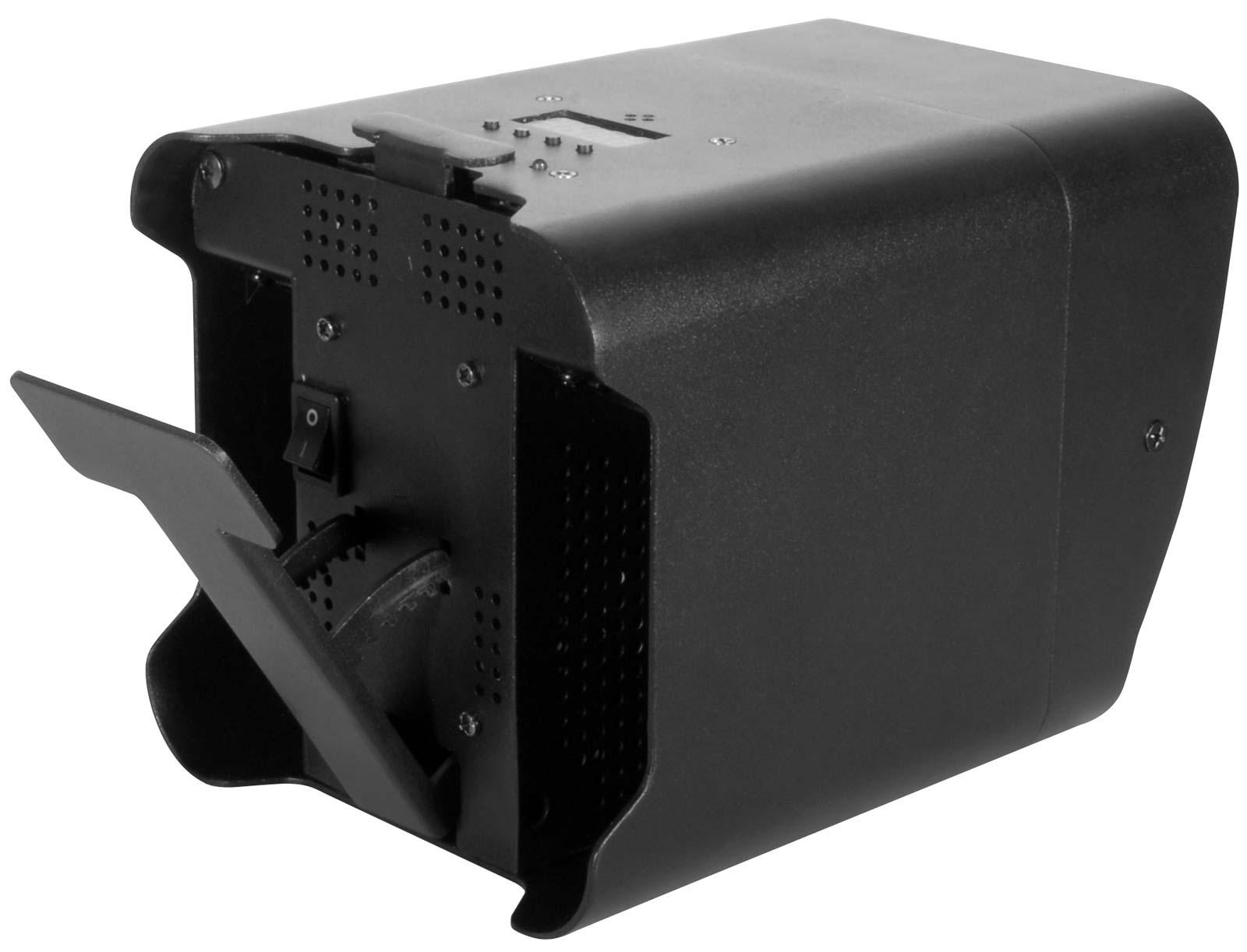

• Shine light where it is needed using the built-in adjustable kickstand
• Extend the battery’s lifespan with built-in discharge protection
• Safely store and transport your fixtures from gig to gig in the CHS-FR4 carry bag

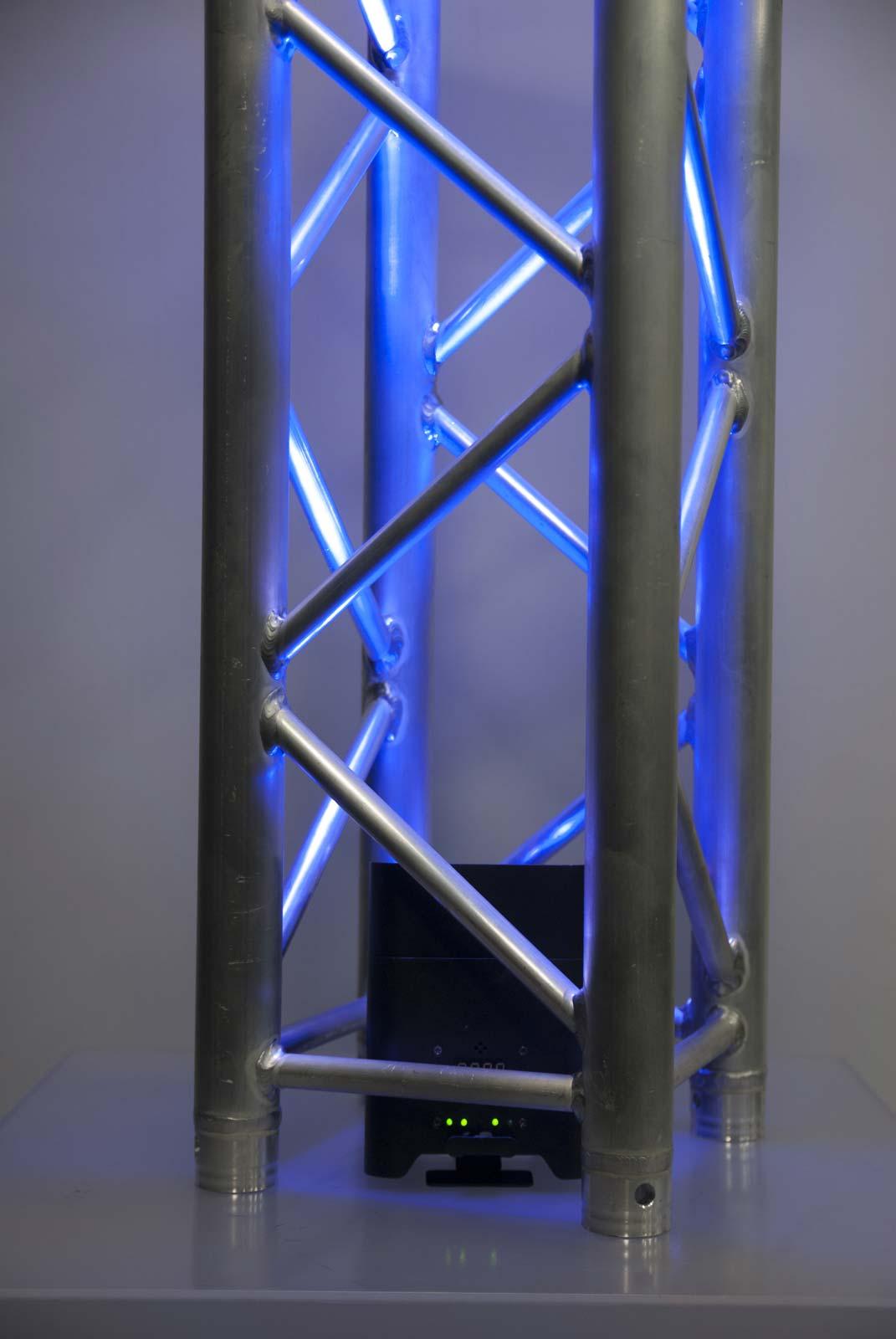

• Compact and lightweight design easily fits inside sticks of TRUSST®
Specifications:
• DMX Channels: 4, 6 or 10
• DMX Connectors: 3-pin XLR
• Light Source: 4 LEDs (quad-color RGBA) 5 W (2 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 17 Hz
• Beam Angle: 15°
• Field Angle: 29°
• Operating Frequency: 2.4 GHz
• Illuminance: 2,300 lux @ 2 m
• Maximum Run Time (all on): up to 8 hours
• Maximum Run Time (single color): up to 20 hours
• Recharge Time: 6 hours
• Power Linking: 15 units @ 120 V; 28 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 35 W, 0.5 A @ 120 V, 60 Hz
• Power and Current: 33 W, 0.3 A @ 230 V, 50 Hz
• Weight: 6.2 lb (2.8 kg)
• Size: 5.4 x 5.7 x 7.2 in (138 x 145 x 184 mm)
• Approvals: CE, FCC
